PART #12PV7123253031

AGM PVS-7 3NL3

$3,460.00
Package Includes
  • Packing Box
  • Demist Shields
  • Operators Manual
  • One Lithium Battery CR123A
  • Lens Tissue
  • Neck Lanyard
  • Head Mount Assembly
  • Sacrificial Window
  • Soft Carrying Case
Characteristics
  • Image Intensifier Tube: Gen 3 "Level 3"
  • Magnification: 1x
  • Lens System: 27 mm; F/ 1.2
  • FOV: 40°
Quick Order
Add to cart
Compare

Export Restrictions:
Item demonstrated in this is dependent upon US trade guidelines and may require a permit preceding fare. Any redirection in opposition to US Government guidelines is denied.

Description And features

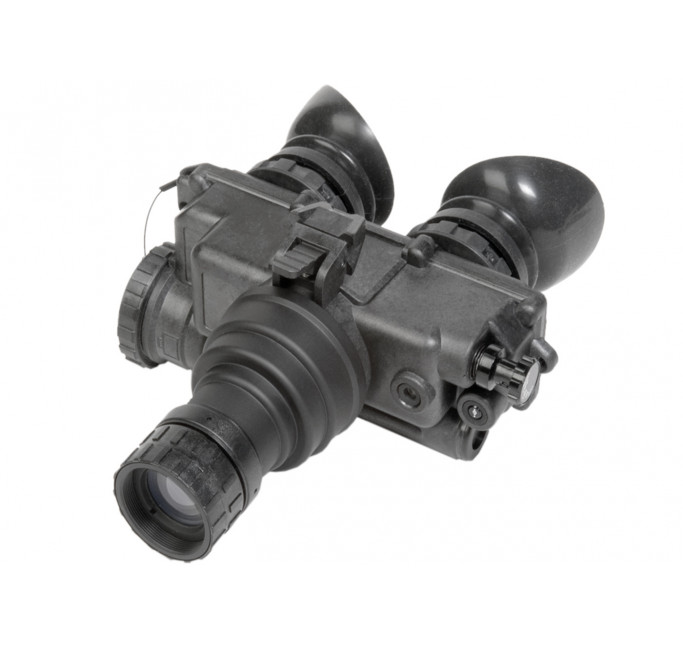

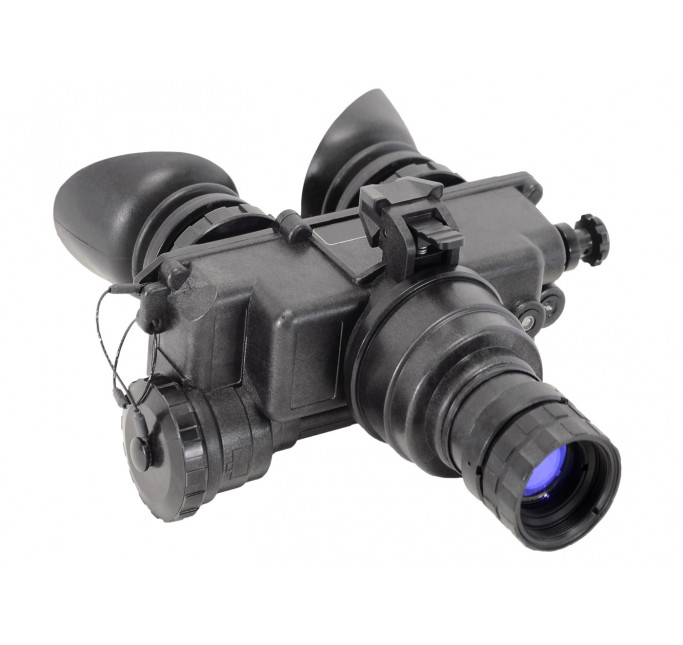

The PVS-7 is widely known for its unsurpassed reliability and ergonomic layout. This U.S. military grade night vision system has been tested repeatedly in combat and is the highest quality AN/PVS-7 B/D unit on the market. The PVS-7 can be equipped with high performance Gen 2+ and Gen 3 image intensifier tubes (available with P45 green or white phosphorus). The PVS-7 is equipped with Automatic Brightness Control (ABC) to control image brightness in varying light environments to keep images sharp and clear. A built-in IR illuminator ensures a light supply outside the visible spectrum, which allows the user to work in complete darkness undetected. In addition, the PVS-7 has a dimming function to protect the video tube from intense light sources, as well as a flip-down option that can be used with the additional helmet attachment system. The PVS-7 has two LEDs in the eyepiece to activate the IR light and a low charge battery display. Lightweight, durable and universal, the PVS-7 can be handheld or attached to the user's head/helmet. It is interoperable with aphocal magnification lenses for excellent viewing over long range.

  • Compact, rugged design
  • Waterproof

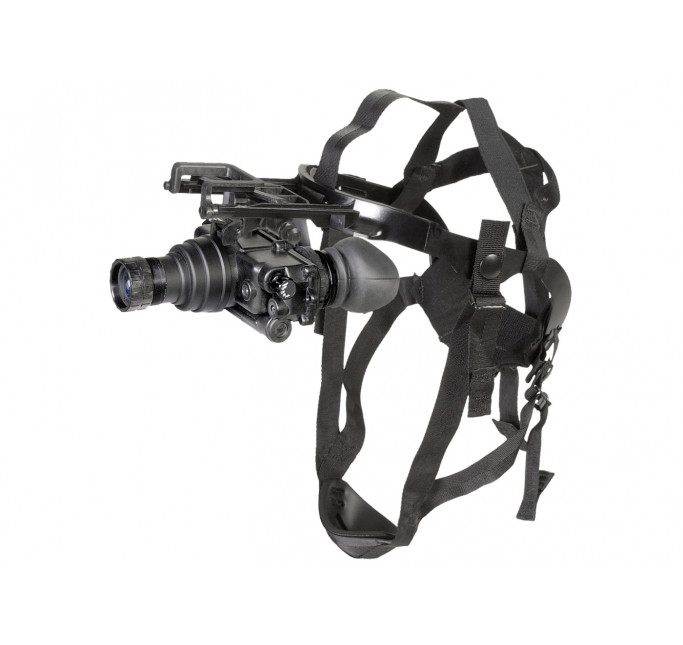

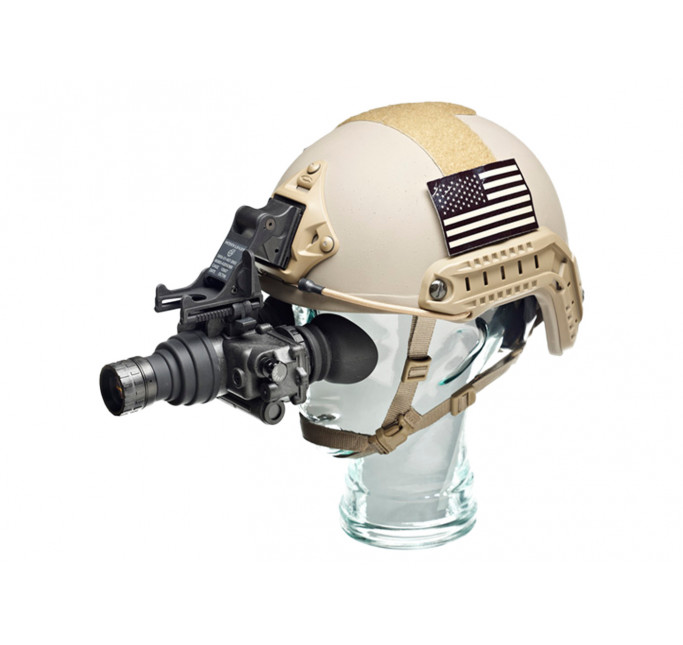

  • Head or helmet-mountable for hands-free operation
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited 3-Year Warranty

Specifications

Image Intensifier Tube

Gen 3 "Level 3"

Resolution

64 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3NL3 offers good quality at competitive pricing.

Magnification

1x

Lens System

27 mm; F/ 1.2

FOV

40°

Focus Range

0.2 m to infinity

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Automatic Brightness Control

Yes

Infrared Illuminator

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

2 AA Alkaline or 1 Lithium (BA-5567/ U)

Battery Life (Operating)

Up to 60 hours at 20°C

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

0.68 kg (1.5 lbs)

Overall Dimensions

162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)

Package Includes

Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual
